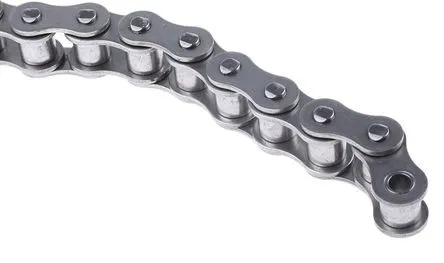

B series 24B-1 driving chain

FOB Reference Price:Get Latest Price
$0.80 - $20.00 / Meters | 100 Meter/Meters (Min. Order)
Model Number:
24B-1 driving chain
Lead Time:
Quantity(Meters) 1 - 100 >100
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Type:
Roller Chain
Material:
Alloy
Tensile Strength:
222.0KN
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TV Brand 24B-1 driving chain
Structure:
Roller Chain
Function:
Transmission Chain
Roller diameter:
25.40mm
Pitch:
38.10mm
Width between inner plates:
25.40mm
Pin diameter:
14.63mm
Inner plate depth:
33.20mm
Plate thickness:
6.0/4.8mm
Average tensile strength:
178.0KN
weight per meter:
7.10KG
Supply Ability
Supply Ability:
50000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
PVC Bag+TV fancy carton Box / Neutral carton box+Wooden case
Port
shanghai or ningbo
Lead Time :
Quantity(Meters) 1 - 100 >100
Est. Time(days) 25 To be negotiated

Product Description

1. TV® roller chain specifications: A series : ISO/ANSI 35-160, B series: DIN/ISO 04B-72B

2. All with Simplex/Duplex/Triplex

3. Colors available: Natural, Yellow, Blue, Gold, White, and Black, etc.

4. Material: Carbon steel/40Mn, Stainless Steel

5. Packing: Various packing, box/roll.

6. Roller Chain length standard: measurement pitch number 49, and length margin of mirror is within ±0.25%, in normal measurement conditions

7. Bending values: the chain ends relative twist angle under 9°/3M, in the normal measurement conditions
8. The pin ends will be riveted firmly evenly
9. TV® roller chain every hinge will be flexible
10. TV® roller chain will be cleaned before packing and antirust treatment by 903# Grease


DIN/ISO
Chain No.

Pitch

Roller

Width
between
inner plates

Pin
diameter

Pin
length

Inner
plate
depth

Plate
thick
-ness

Ultimate
tensile
strength

Average
tensile
strength

weight
per
meter

P

d1
max

b1
min

d2
max

L
max

Lc
max

h2
max

T
max

Q
min

Q0

q

mm

mm

mm

mm

mm

mm

mm

mm

KN/LB

KN

KG/M

04B-1

6.000

4.00

2.80

1.85

6.80

7.8

5.00

0.60

3.0/682

3.2

0.11

05B-1

8.000

5.00

3.00

2.31

8.20

8.9

7.10

0.80

5.0/1136

5.9

0.20

*06B-1

9.525

6.35

5.72

3.28

13.15

14.1

8.20

1.30

9.0/2045

10.4

0.41

08B-1

12.700

8.51

7.75

4.45

16.70

18.2

11.80

1.60

18.0/4091

19.4

0.69

10B-1

15.875

10.16

9.65

5.08

19.50

20.9

14.70

1.70

22.4/5091

27.5

0.93

12B-1

19.050

12.07

11.68

5.72

22.50

24.2

16.00

1.85

29.0/6591

32.2

1.15

16B-1

25.400

15.88

17.02

8.28

36.10

37.4

21.00

4.15/3.1

60.0/13636

72.8

2.71

20B-1

31.750

19.05

19.56

10.19

41.30

45.0

26.40

4.5/3.5

95.0/21591

106.7

3.70

24B-1

38.100

25.40

25.40

14.63

53.40

57.8

33.20

6.0/4.8

160.0/36364

178.0

7.10

28B-1

44.450

27.94

30.99

15.90

65.10

69.5

36.70

7.5/6.0

200.0/45455

222.0

8.50

32B-1

50.800

29.21

30.99

17.81

66.00

71.0

42.00

7.0/6.0

250.0/56818

277.5

10.25

40B-1

63.500

38.10

38.10

22.89

82.20

89.2

52.96

8.5/8.0

355.0/80682

394.0

16.35

48B-1

76.200

48.26

45.72

29.24

99.10

107.0

63.80

12.0/10.0

560.0/127272

621.6

25.00

56B-1

88.900

53.98

53.34

34.32

114.6

123.0

77.80

13.5/12.0

850.0/193180

940.0

35.78

64B-1

101.600

63.50

60.96

39.40

130.0

138.5

90.17

15.0/13.0

112.0/254544

1240.0

46.00

72B-1

114.300

72.39

68.58

44.48

147.4

156.4

103.60

17.0/15.0

1400.0/318180

1550.0

60.80

*This chains plates are straight side plate.




Our Services

TV chain supply OEM/ODM  service.




Packaging & Shipping

In gerneral, we can supply TV brand or the Neutral leaf chain package, we also can make the OEM package as your requests. As following:

                                      TV brand box                                                                                         Customer requirement *Printed in China.


Company Information

Why  Choose  TV chain?

1. Hangzhou Vision Chain Transmisison Co ltd. is UK- Investment Chain manufacture in Hangzhou, China, found in 2004. We have one Chain manufacturer and one Sprocket manufacturer.

2. Qualified Alloy steel chain put our TV brand chain in the top quality level in China. We are honoured with ISO9001 ISO14001 AAA Credit certificate.

3. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.


FAQ

TV chain accept EXW, FOB, CIF and other normal international trade rule.

TV chain accept D/P, L/C, T/T and other normal type of payment.

IF the order total account low than $1,000.00, we can accept payment by Paypal, Western Union, Moneygram and other quick payment.

Q: What is the wear life of the chain?
Chain wear life is typically 1.5% elongation (normal measurement 6-12) in the application of the drive, and 2% elongation in the transportation applications. Our chains can withstand up to 3% elongation, but this may damage the chain sprocket, overloaded, or increase the vibration and noise.

*Please refer to our offical website for more details about  Driving chain  TVchain.cn
