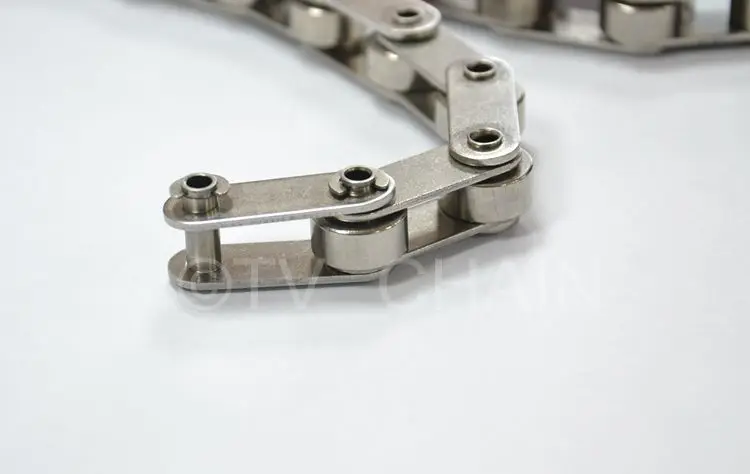

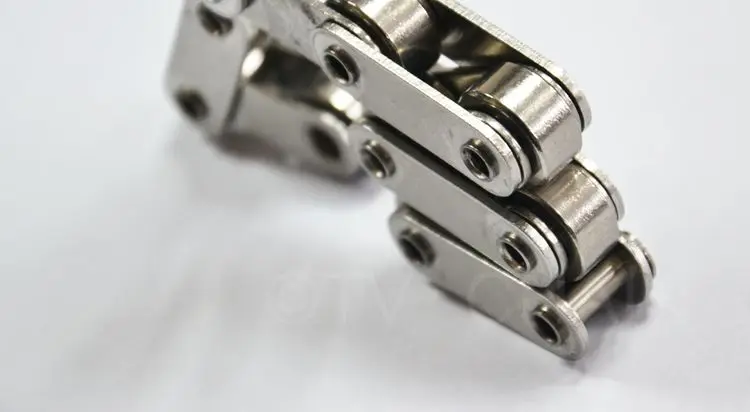

High strengthStainless Steel Chain / SS304 roller chain with corrosion resistance

FOB Reference Price:Get Latest Price
US $10-100 / Meters | 100 Meter/Meters Stainless Steel Chain (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TV Brand
Model Number:
Stainless Steel Chain
Structure:
Roller Chain
Function:
Conveyor Chain
Material:
Stainless Steel, 304/310/316
Standard or Nonstandard:
Standard
Type:
ASA 40 Stainless Steel Chain
Pitch:
12.70
Roller diameter:
7.95
Width between inner plates:
7.85
Pin diameter:
3.96
Inner plate depth:
12.00
Plate thick-ness:
1.50
Ultimate tensile strength:
9.6/2182
Name:
High strengthStainless Steel Chain / SS304 roller chain
Supply Ability
Supply Ability:
20000 Meter/Meters per Month Stainless Steel Chain
Packaging & Delivery
Packaging Details
5M or 10FT /Stainless Steel Chain Carton Box:
Port
Shanghai
Lead Time :
Around 35 days
Product Description



High strengthStainless Steel Chain / SS304  roller chain with corrosion resistance



1. TV® stainless steel chain minimum ultimate breaking load 2.5/568 KN/LB
2. Chain length standard: in normal measurement conditions, the measurement pitch number 49, and length margin of mirror is within ±0.25%
3. Bending values: in the normal measurement conditions, the chain ends relative twist angle under 9°/3M
4. The pin ends will be riveted firmly evenly
5. TV® stainless steel chain every hinge will be flexible



DIN/ISO
Chain No.

Pitch

Roller diameter

Width
between
inner plates

Pin
diameter

Pin
length

Inner
plate
depth

Plate
thick
-ness

Ultimate
tensile
strength

weight
per
meter

P

d1
max

b1
min

d2
max

L
max

Lc
max

h2
max

T
max

Q
min

q

mm

mm

mm

mm

mm

mm

mm

mm

KN/LB

KG/M

*25SS

6.350

3.30

3.18

2.31

7.9

8.4

6.00

0.8

2.5/568

0.15

*35SS

9.525

5.08

4.77

3.58

12.4

13.17

9.00

1.30

5.5/1250

0.33

40SS

12.700

7.95

7.85

3.96

16.6

17.8

12.00

1.50

9.6/2182

0.63

41SS

12.700

7.77

6.25

3.58

13.75

15.0

9.91

1.30

6.0/1360

0.46

50SS

15.875

10.16

9.40

5.08

20.7

22.2

15.09

2.03

15.2/3455

1.03

60SS

19.050

11.91

12.57

5.94

25.9

27.7

18.00

2.42

21.7/4932

1.51



*From 04BSS-32BSS and 25SS-140SS ,and C2040SS -C2012HSS , attachment chains , standard roller chains and conveyor chains ,and hollow pin chains and attachment chains , all kinds of chains for your choice .



Catalogue:

TV Brand Stainless Steel Chain-8.jpgTV Brand Stainless Steel Chain-9.jpg


Our Services



TV chain supply OEM/ODM  Stainless Steel Chain service.

DUPLEX STAINLESS STEEL CHAIN_TV CHAIN.jpg



TV stainless steel hollow pin chain.jpg



TV stainless steel hollow pin chain_TV CHAIN.jpg





.jpg

TV_chain_production_flow_process


Packaging & Shipping



In gerneral,  we can supply TV brand or the Neutral Stainless Steel Chain package, we also can make the OEM package as your requests. As following:

tv roller chain shipping package



                                        TV brand box                                                                                         Customer requirement *Printed in China.


Company Information



Why  Choose  TV chain?

1. Hangzhou Vision Chain Transmisison Co ltd. is UK- Investment Chain manufacture in Hangzhou, China, found in 2004. We have one Chain manufacturer and one Sprocket manufacturer.

2. Qualified Alloy steel chain put our TV brand chain in the top quality level in China. We are honoured with ISO9001 ISO14001 AAA Credit certificate.

3. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.

FAQ



TV chain accept EXW, FOB, CIF and other normal international trade rule.

TV chain accept D/P, L/C, T/T and other normal type of payment.

IF the order total account low than $1,000.00, we can accept payment by Paypal, Western Union, Moneygram and other quick payment.

Q: What is the wear life of the chain?
Chain wear life is typically 1.5% elongation (normal measurement 6-12) in the application of the drive, and 2% elongation in the transportation applications. Our chains can withstand up to 3% elongation, but this may damage the chain sprocket, overloaded, or increase the vibration and noise.
