Welded Conveyor Chain

FOB Reference Price:Get Latest Price
US $15-120 / Meters | 100 Meter/Meters conveyor chain (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Type:
Conveyor chain, welded conveyor chain
Material:
Alloy
Tensile Strength:
185.9KN
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TV /OEM
Model Number:
welded conveyor chain
Pitch:
101.60MM
Bush diameter:
37.1MM
Width between inner plates:
41.2MM
Pin diameter:
19.13MM
Pin length:
103.0-110.0MM
Inner plate depth:
38.1MM
Plate thickness:
9.7MM
Weight per meter:
12.38KG
Supply Ability
Supply Ability:
50000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
suitabel for exporting conveyor chain
Port
Shanghai
Lead Time :
25 days after order confirmed

Specifications

1. Welded Conveyor Chain
1. Manufactured by Vision Chain Company
2. All types: from WR78/WH78, WR124/WH124, 2510, 2517, 251


Product Description

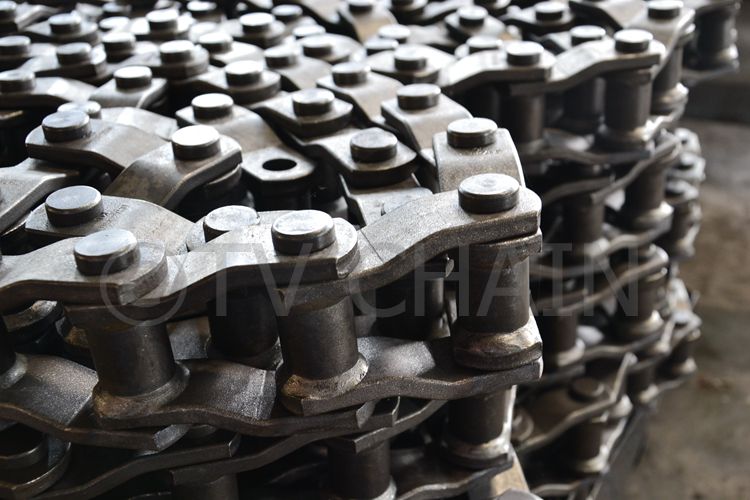

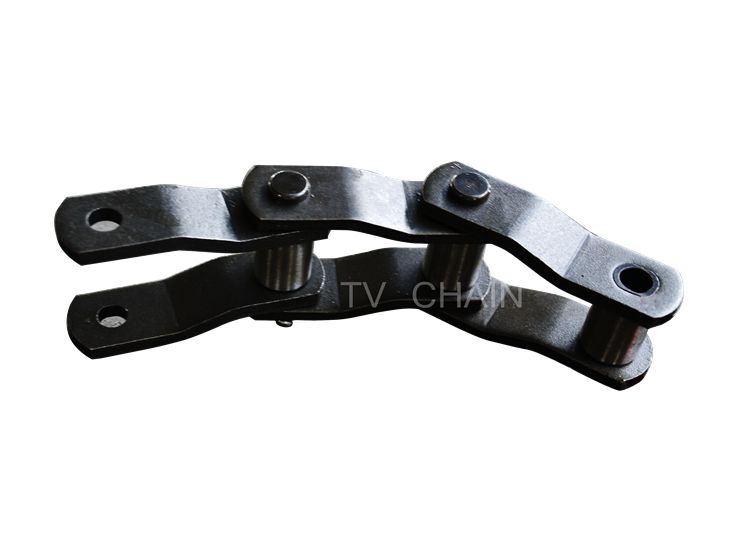

Welded conveyor chain

Material: Medium carbon alloy steel

Special material: 2Cr13 (AISI 420)

Type : Bush Roller Chain.

Pitch length: 66.27mm - 153.67mm



NOTE

WR: welded steel chain c/w heat treated pind&bushings

WH: welded steel chain - fully heat treated






Our Services

TV chain supply OEM/ODM welded Conveyor Chain service.










Packaging & Shipping

In gerneral,   we can supply TV brand or the Neutral welded Conveyor Chain package, we also can make the OEM package as your requests. As following:

                                        TV brand box                                                                                         Customer requirement *Printed in China.


Company Information

Why  Choose  TV chain?

1. Hangzhou Vision Chain Transmisison Co ltd. is UK- Investment Chain manufacture in Hangzhou, China, found in

2004. We have one Chain manufacturer and one Sprocket manufacturer.

2. Qualified Alloy steel chain put our TV brand chain in the top quality level in China. We are honoured with ISO9001

ISO14001 AAA Credit certificate.

3. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain,

Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain,

Dropped Forged Rivetless Chain and so on.


FAQ

TV chain accept EXW, FOB, CIF and other normal international trade rule.

TV chain accept D/P, L/C, T/T and other normal type of payment.

IF the order total account low than $1,000.00, we can accept payment by Paypal, Western Union, Moneygram

and other quick payment.

Q: What is the wear life of the chain?
Chain wear life is typically 1.5% elongation (normal measurement 6-12) in the application of the drive,
and 2% elongation in the transportation applications. Our chains can withstand up to 3% elongation,
but this may damage the chain sprocket, overloaded, or increase the vibration and noise.

*Please refer to our offical website for more details about  welded Conveyor Chain   TVchain.cn
